TESMEN

TM-510 Smart Digital Multimeter

Smart Auto-Identification:

Skip the manual dialing. The TM-510 automatically recognizes and switches between AC/DC voltage, resistance, and continuity tasks with a 4,000-count resolution for fast, bulletproof troubleshooting.

Safe Non-Contact Testing (NCV):

Detect live AC wires behind walls or outlets completely touch-free. Features built-in visual and audible alerts to safely trace line issues without exposing bare wire.

Rugged & Rated Safety:

Certified with CAT II 600V, CE, and RoHS. Built-in internal overload protection combines with a heavy-duty outer silicone sleeve to survive unexpected drops and shield against accidental electric shocks.

Pro Convenience Features:

Loaded with premium extras to tackle any DIY task: a bright backlit LCD screen, built-in flashlight, Data Hold, Low Battery indicator, and a 15-minute Auto Power-Off battery saver.

What You Get:

1× TESMEN TM-510 Multimeter, 1× Pair of High-Quality Test Leads, 1× Compact Storage Bag, 2× AAA Batteries, and 1× Comprehensive User Manual.

paypal visa master american express discover apple pay google pay
  • 100% Secure Checkout

    Secure Payment Gateways Only

  • Warranty

    3-Year warranty policy

  • Fast Delivery

    Tracked Shipping

  • After-Sale Service

    24/7 support

A CLOSER LOOK

Explore TM-510 Smart Digital Multimeter

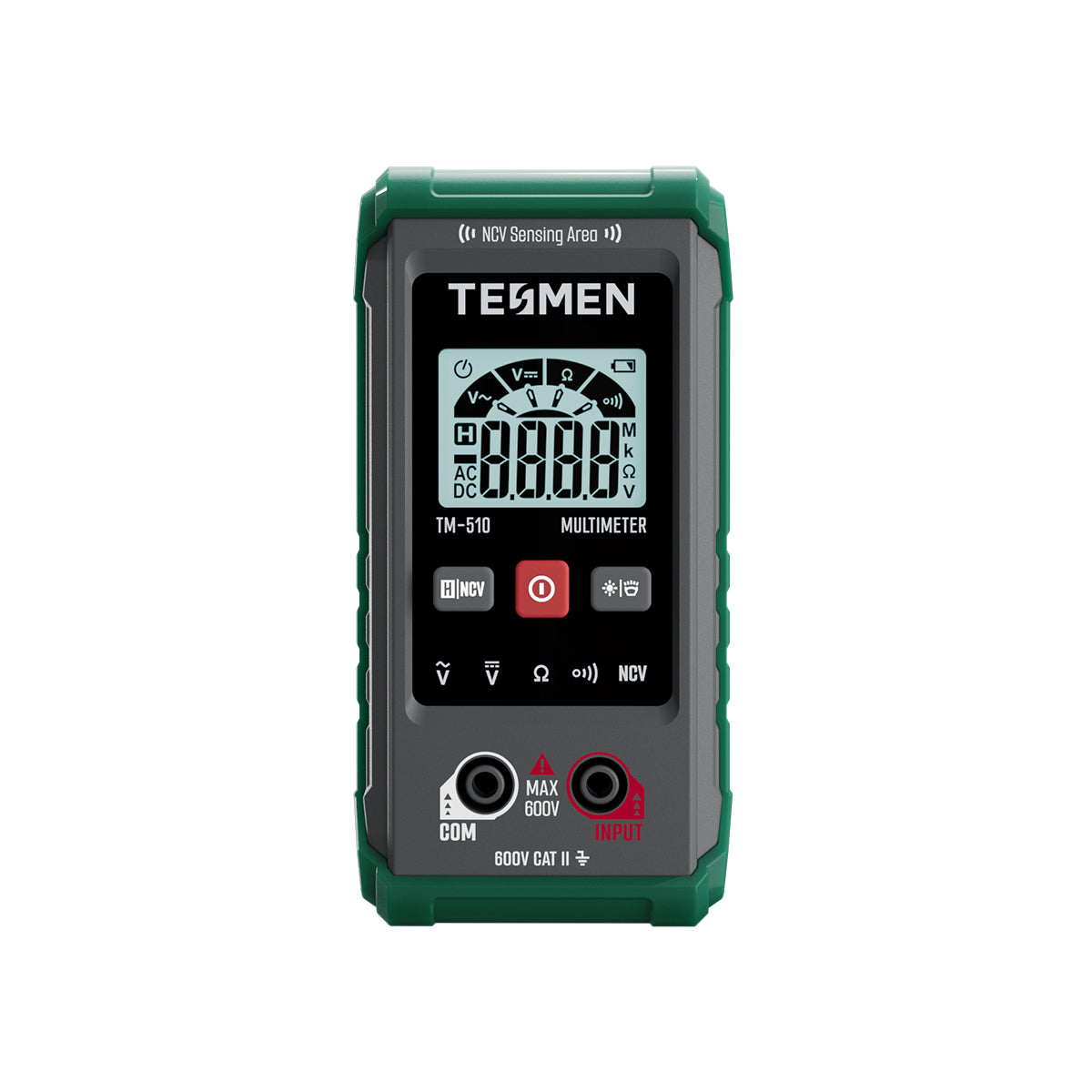

TM-510 360 view

Technical Specifications

Altitude

< 2000 m

Measurable Voltage

0.8 ~ 600 v

Working Environment

0 ~ 40 ℃

Sampling

approx. 3 times / second

Display

4000 counts

Over Range Indication

"0 L" displayed

Frequency Response

40 Hz ~ 1 kHz True RMS

Function

Measure AC/DC Voltage, Resistant, Continuity

AC Voltage

0.8V~600V; ±(1.2%+5)

DC Voltage

0.8V~600V; ±(1.0%+5)

Note

CAN NOT MEASURE CURRENT

Certification

CE, UKCA, RoHS

User Manual

AS SEEN ON

Alt image

How to Use

Step 1. Please remove the rubber sleeve behind the multimeter, open the battery back cover, and put 2 AAA batteries into the battery compartment according to their polarity marks. Place the battery cover back on.

Step 2. Turn on the multimeter, insert the test leads according to the prompts, and enter the test after the two ends of the test leads are in contact with each other for calibration.

Step 3. To measure AC/DC voltage, resistance, or continuity. Insert the test leads into the multimeter and connect them to both ends of the measured object. The multimeter measures automatically without user selection.

Note: No need to use test leads if you want to use the NCV function.

About AUTO mode: In Auto mode, if the detected battery voltage is below 0.8V, the device will automatically measure the resistance.
